W-series Air Hose Reels
- Our newest ultra compact design.
- Product

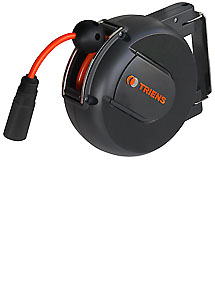

- W-series Air Hose Reel 1/4" X 20.0ft
- Model
- WHC-220AU
- Features
- Super compact frame size makes it possible to install everywhere you want.
- Strengthened mounting bracket
- Compact size is perfect for applications where space is limited.
- TRIENS signature series poly urethane braid hose
- Wall or ceiling mount
- Swivel and tiltable bracket
- Reels come complete with urethane braid inlet hose, ball stop and complete mounting hardware.
- Redesigned steel ratchet and gears for long life.
- Solid brass axel
- Easy coupling - makes replacing hose fast and easy.
- TRIENS' quick repair outlet fitting.
- Outlet fitting cover included.
Specifications
| Model | Outlet Hose | Maximum Working Pressure PSI |
Inlet Hose | Dimensions Inch [mm] |
Weight lb [kg] |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose | Outlet | I.D. Inch [mm] |
Length ft |
Inlet | Length ft |
A | B | C | |||
| WHC-220A U | PU | NPT1/4"M | 1/4" [6.5] |
20.0 | 203 | NPT1/4"M | 2.6 | 9" [228] |
10-3/4" [272] |
5-4/3" [146] |
6.0 [2.7] |
Installation Positioning |
Dimensions |
 |
 |
Notes:
• Read the manual thoroughly and use it properly.
• The actual product color may differ.
• Product specifications are subject to change for improvements without notice.
• These products are for indoor use only.
