Water Hose Reels Z-series(Heavy Duty)

  • Heavy gauge steel body with stylish plastic cover.
  • Designed for all industrial applications.

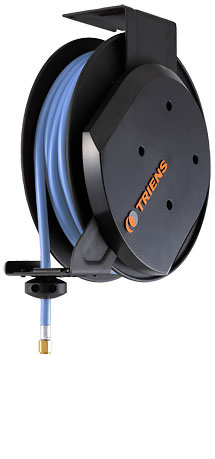

Heavy Duty ZLW-415L
Product
Z-series Water Hose Reels 1/2" X 65.0ft
Model
ZLW-465D U
Features
  • Designed for applications where extended length is required.
  • Reels come complete with inlet hose, ball stop.
  • Solid brass swivel
  • Ceiling, floor or wall mount.
  • Guide Arms adjust to wall, floor and overhead positions.
  • Z-series Large Frame

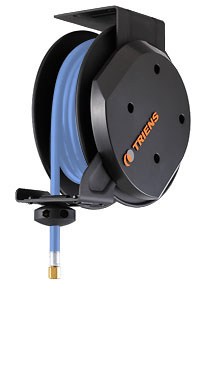

Heavy Duty ZSW-408L
Product
Z-series Water Hose Reels 1/2" X 35ft
Model
ZSW-435D U
Features
  • Compact desigh allows for easy installation in tight spaces.
  • Reels come complete with inlet hose, ball stop.
  • Solid blass swivel
  • Ceiling, floor or wall mount.
  • Guide Arms adjust to wall, floor and overhead positions.

  • Special order only
  • Z-series Small Frame

Specifications

Z-series Large Frame(Large)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
ZLW-465D U PVC GHT 3/4"M 1/2"
[13.0]
65.0 72.5 GHT 3/4" F 3.2 21-1/4"
[540]
20-5/16"
[516]
9-7/8"
[250]
55.5
[25.2]

Z-series Small Frame(Small)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
ZSW-435D U PVC GHT 3/4"M 1/2"
[13.0]
35.0 72.5 GHT 3/4" F 3.2 15-7/16"
[392]
15"
[380]
9-7/8"
[250]
36.3
[16.5]

Special order only


Installation Positioning

Dimensions

Installation Positioning Dimensions

Odering Information

Notes:

• Read the manual thoroughly and use it properly.

• The actual product color may differ.

• Product specifications are subject to change for improvements without notice.

• These products are for indoor use only.
