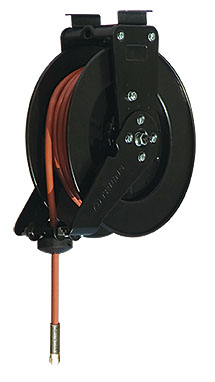

Water Hose Reels G-series

  • Dual pedestal heavy duty reels for industrial use.
G-series Water Hose Reels
Product
G-series Water Hose Reels 1/2" X 35.0ft
Model
GS I W-435
Features
  • Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
  • Ideal for truck mount application.
  • Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
  • Guide arms adjust to wall, floor and overhead positions.

G-series Water Hose Reels
Product
G-series Water Hose Reels 1/2" X 65.0ft
Model
GM I W-465DU
Features
  • Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
  • Ideal for truck mount application.
  • Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
  • Guide arms adjust to wall, floor and overhead positions.

Specifications

Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
GS I W-435DU PVC GHT 3/4"M 1/2"
[13.0]
35.0 72.5 GHT 3/4" F 3.2 18-1/8"
[461]
17-5/8"
[447]
9-3/4"
[245]
28.6
[13.0]
GM I W-465DU PVC GHT3/4"M 1/2"
[13.0]
65 72.5 GHT3/4"F 3.2 22-3/8"
[566]
21-3/4"
[551]
9-3/4"
[245]
41.4
[18.8]


Installation Positioning

Dimensions

Installation Positioning Dimensions

Notes:

• Read the manual thoroughly and use it properly.

• The actual product color may differ.

• Product specifications are subject to change for improvements without notice.

• These products are for indoor use only.
