Oil/Greese Hose Reels Z-series

  • Heavy gauge steel body with stylish plastic cover.
  • Designed for all industrial applications.

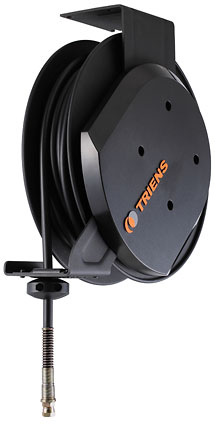

ZLO-365D U
Product
Z-series Oil Hose Reels 3/8" X 65.0ft
Model
ZLO-365D U
Features
  • Designed for applications where extended length is required.
  • Reels come complete with inlet hose, ball stop.
  • Solid brass swivel
  • Ceiling, floor or wall mount.
  • Guide Arms adjust to wall, floor and overhead positions.

  • Special order only
  • Z-series Large Frame

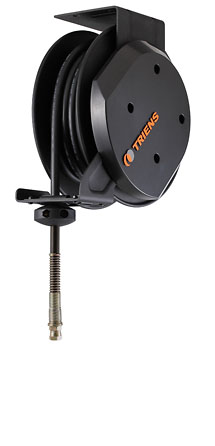

ZSO-330D U
Product
Z-series Oil Hose Reels 3/8" X 30.0ft
Model
ZSO-330D U
Features
  • Compact design allows for easy installation in tight spaces.
  • Reels come complete with inlet hose, ball stop.
  • Solid blass swivel
  • Ceiling, floor or wall mount.
  • Guide Arms adjust to wall, floor and overhead positions.

  • Special order only
  • Z-series Small Frame



ZLG-350D U
Product
Z-series Grease Hose Reels 3/8" X 50.0ft
Model
ZLG-350D U
Features
  • Reels come complete with inlet hose, ball stop.
  • Brass swivel
  • Ceiling, floor or wall mount.
  • Guide Arms adjust to wall, floor and overhead positions.

  • Special order only
  • Z-series Large Frame

ZSG-210L
Product
Z-series Grease Hose Reels 1/4" X 25.0ft
Model
ZSG-225D U
Features
  • Compact design allows for easy installation in tight spaces.
  • Reels come complete with inlet hose, ball stop.
  • Blass swivel
  • Ceiling, floor or wall mount.
  • Guide Arms adjust to wall, floor and overhead positions.

  • Special order only
  • Z-series Small Frame

Specifications

Z-series Large Frame(Large Frame)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
ZLO-365D U Single braid NPT3/8"M 3/8"
[9.5]
65.0 1015 NPT3/8"M 3.2 21-1/4"
[540]
20-5/16"
[516]
9-7/8"
[250]
62.3
[28.3]
ZLO-450D U Single braid NPT1/2"M 1/2"
[12.5]
50.0 1015 NPT1/2"M 3.2 21-1/4"
[540]
20-5/16"
[516]
9-7/8"
[250]
61.0
[27.7]
ZLG-350D U Double braid NPT3/8"M 3/8"
[9.5]
50.0 4060 NPT3/8"M 3.2 21-1/4"
[540]
20-5/16"
[516]
9-7/8"
[250]
65.0
[29.6]
ZLG-265D U Double braid NPT1/4"M 1/4"
[6.3]
65.0 4060 NPT1/4"M 3.2 21-1/4"
[540]
20-5/16"
[516]
9-7/8"
[250]
62.5
[28.4]

Special order only


Z-series Small Frame(Small)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
ZSO-330D U Single braid NPT3/8"M 3/8"
[9.5]
30.0 1015 NPT3/8"M 3.2 15-7/16"
[392]
15"
[380]
9-7/8"
[250]
40.4
[18.4]
ZSG-225D U Double braid NPT1/4"M 1/4"
[6.3]
25.0 4060 NPT1/4"M 3.2 15-7/16"
[392]
15"
[380]
9-7/8"
[250]
39.4
[17.9]

Special order only


Installation Positioning

Dimensions

Installation Positioning Dimensions

Odering Information

Notes:

• Read the manual thoroughly and use it properly.

• The actual product color may differ.

• Product specifications are subject to change for improvements without notice.

• These products are for indoor use only.
