Oil/Grease Hose Reels G-series

  • Dual pedestal heavy duty reels for industrial use.

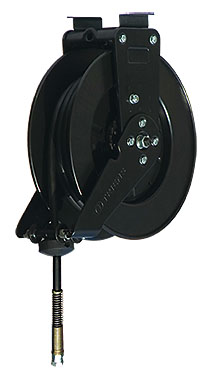

GS I O-340
Product
G-series Oil Hose Reels 3/8" X 40.0ft
Model
GS I O-340
Features
  • Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
  • Ideal for truck mount application.
  • Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
  • Guide arms adjust to wall, floor and overhead positions.

GS I O-340
Product
G-series Oil Hose Reels 3/8" X 50.0ft
Model
GM I OH-350DU
Features
  • Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
  • Ideal for truck mount application.
  • Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
  • Guide arms adjust to wall, floor and overhead positions.



GS I O-340
Product
G-series Grease Hose Reels 1/4" X 40.0ft
Model
GS I G-240
Features
  • Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
  • Ideal for truck mount application.
  • Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
  • Guide arms adjust to wall, floor and overhead positions.

GS I O-340
Product
G-series Grease Hose Reels 1/4" X 50.0ft
Model
GM I G-250DU
Features
  • Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
  • Ideal for truck mount application.
  • Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
  • Guide arms adjust to wall, floor and overhead positions.

Specifications

Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
GS I O-340DU Single braid NPT3/8"M 3/8"
[9.5]
40.0 2030 NPT3/8"M 3.2 18-1/8"
[461]
17-5/8"
[447]
9-3/4"
[245]
37.0
[16.5]
GS I O-435DU Single braid NPT1/2"M 1/2"
[12.5]
35.0 2030 NPT1/2"M 3.2 18-1/8"
[461]
17-5/8"
[447]
9-3/4"
[245]
37.0
[16.5]
GM I OH-350DU Single braid NPT3/8" M 3/8"
[9.5]
50 2030 NPT3/8"M 3.2 22-3/8"
[566]
21-3/4"
[551]
9-3/4"
[245]
45.8
[20.8]
GM I OH-365DU Single braid NPT3/8" M 3/8"
[9.5]
65 2030 NPT3/8"M 3.2 22-3/8"
[566]
21-3/4"
[551]
9-3/4"
[245]
49.3
[22.4]
GM I OH-450DU Single braid NPT1/2" M 1/2"
[12.5]
50 2030 NPT1/2"M 3.2 22-3/8"
[566]
21-3/4"
[551]
9-3/4"
[245]
49.3
[22.4]
GS I G-240DU Double braid NPT1/4"M 1/4"
[6.3]
40.0 4060 NPT1/4"M 3.2 18-1/8"
[461]
17-5/8"
[447]
9-3/4"
[245]
37.0
[16.5]
GS I G-335DU Double braid NPT3/8"M 3/8"
[9.5]
35.0 4060 NPT3/8"M 3.2 18-1/8"
[461]
17-5/8"
[447]
9-3/4"
[245]
40.0
[18.0]
GM I G-250DU Double braid NPT1/4" M 1/4"
[6.3]
50 4060 NPT1/4"M 3.2 22-3/8"
[566]
21-3/4"
[551]
9-3/4"
[245]
45.8
[20.8]
GM I G-265DU Double braid NPT1/4" M 1/4"
[6.3]
65 4060 NPT1/4"M 3.2 22-3/8"
[566]
21-3/4"
[551]
9-3/4"
[245]
49.5
[22.5]
GM I G-350DU Double braid NPT3/8" M 3/8"
[9.5]
50 4060 NPT3/8"M 3.2 22-3/8"
[566]
21-3/4"
[551]
9-3/4"
[245]
52.4
[23.8]

Installation Positioning

Dimensions

Installation Positioning Dimensions

Notes:

• Read the manual thoroughly and use it properly.

• The actual product color may differ.

• Product specifications are subject to change for improvements without notice.

• These products are for indoor use only.
