High pressured Water Hose Reels Z-series (Heavy Duty)

  • suitable for hot water and pressurized water applications.
  • Heavy gauge steel body with stylish plastic cover.
  • Designed for all industrial applications.

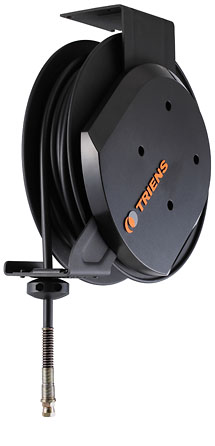

ZLH-365D U
Product
Z-series High pressured Water Hose Reels 3/8" X 65.0ft
Model
ZLH-365D U
Features
  • Designed for applications where extended length is required.
  • Reels come complete with inlet hose, ball stop.
  • Solid brass swivel
  • Ceiling, floor or wall mount.
  • Guide Arms adjust to wall, floor and overhead positions.

  • Special order only
  • Z-series Large Frame

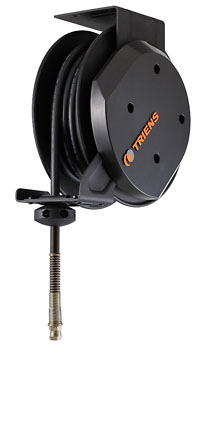

ZSH-310L
Product
Z-series High pressured Water Hose Reels 3/8" X 30.0ft
Model
ZSH-330D U
Features
  • Compact design allows for easy installation in tight spaces.
  • Reels come complete with inlet hose, ball stop.
  • Solid blass swivel
  • Ceiling, floor or wall mount.
  • Guide Arms adjust to wall, floor and overhead positions.

  • Special order only
  • Z-series Small Frame


Specifications

Z-series Large Frame(Large)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
ZLH-365D U Single braid NPT3/8"M 3/8"
[10.0]
65.0 2030 NPT3/8"M 3.2 21-1/4"
[540]
20-5/16"
[516]
9-7/8"
[250]
62.3
[28.3]
ZLH-450D U Single braid NPT1/2"M 1/2"
[13.0]
50.0 2030 NPT1/2"M 3.2 21-1/4"
[540]
20-5/16"
[516]
9-7/8"
[250]
61.0
[27.7]

Special order only



Z-series Small Frame(Small)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
ZSH-330D U Single braid NPT3/8"M 3/8"
[10.0]
30.0 2030 NPT3/8"M 3.2 15-7/16"
[392]
15"
[380]
9-7/8"
[250]
40.5
[18.4]

Special order only



Installation Positioning

Dimensions

設置方向 寸法図

Odering Information

Notes:

• Read the manual thoroughly and use it properly.

• The actual product color may differ.

• Product specifications are subject to change for improvements without notice.

• These products are for indoor use only.
